    Poclain MS08 Low Speed High Torque Hydraulic Motor With High Pressure Capacity Shaft Seal

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : MS08
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Poclain MS08 Low Speed High Torque Hydraulic Motor With High Pressure Capacity Shaft Seal


    Poclain MS08 Low Speed High Torque Hydraulic Motor With High Pressure Capacity Shaft Seal


    Features:


    MS08 series hydraulic motor:


    This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

    It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.


    MS08 Displacement Diagram


    Type

    Displacement

    MS08-8MS08-9MS08-0MS08-1MS08-2
    Full/SemiFull/SemiFull/SemiFull/SemiFull/Semi
    Displacement(ml/r)627313702351780390857428934467
    Max power(kw)36243624362436243624

    Pressure discrepancy

    10MPa Torque (N.m)

    9374591049514116657112816281396684
    Rated torque(N.m)23432623291432023490
    Rated pressure(MPa)2525252525
    Max pressure(MPa)4040403535
    Rated speed(r/min)7070706565
    Speed range(r/min)0-1700-1700-1700-1550-140

    Poclain MS08 Low Speed High Torque Hydraulic Motor With High Pressure Capacity Shaft Seal


    Applications:


    Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.

    Farming Machinery: Spray Machine.

    Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.

    Special Vehicles: Fire Engine.

    Forest Machinery: Stumper, Loader, Forest Felling Machine.

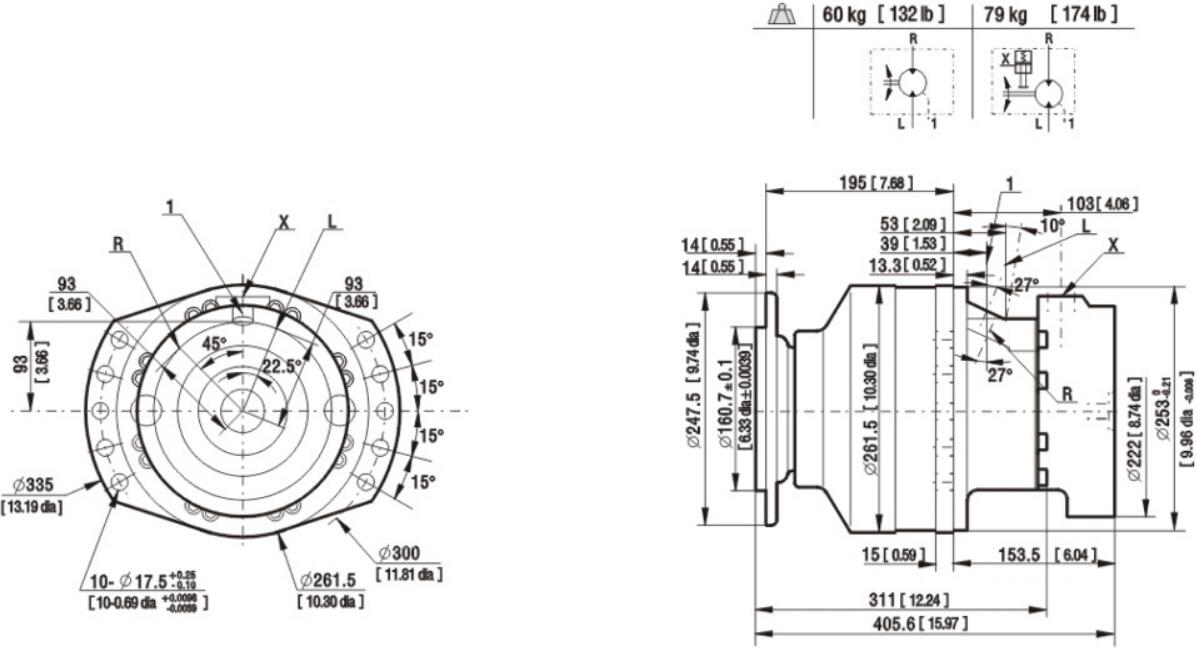

    MS08 Connection Dimension


    High precision testing facilities and experienced inspectors.
