    Poclain MS35 Low Speed High Torque Hydraulic Motor With Higher Output Torques

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : MS35
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

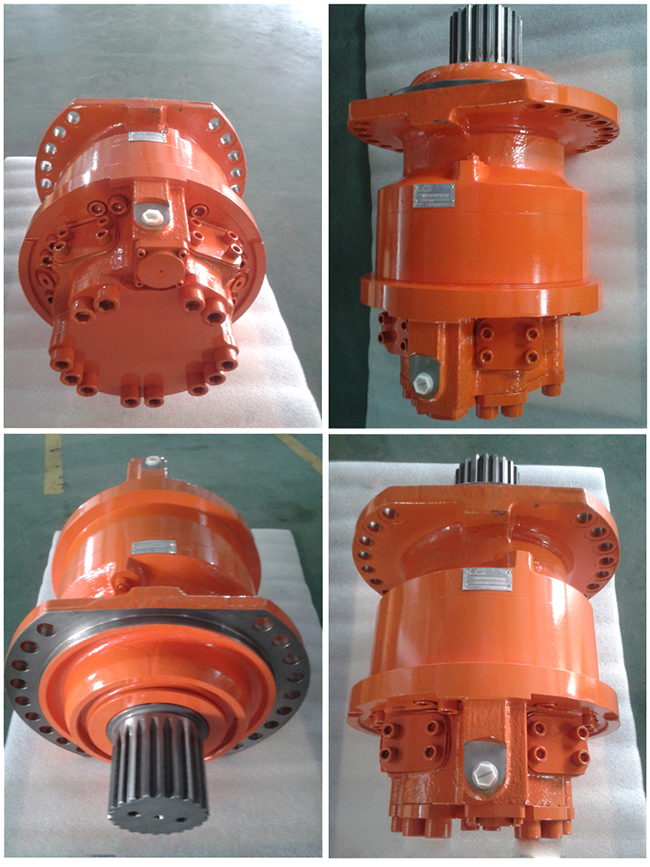

    Poclain MS35 Low Speed High Torque Hydraulic Motor With Higher Output Torques

    Poclain MS35 Low Speed High Torque Hydraulic Motor With Higher Output Torques

    Features:

    MS35 Series Hydraulic Motor
    1.radial piston design.
    2.higher output torques,lower output speed,smoother output speed at low speeds.
    3.optimized and modular design capable of delivering high performance.
    4.highly efficient at any speed or operating pressure.
    5.withstand the most extreme operating conditions and require very little maintenance.


    **IMPORTANT INFORMATION**
    As with any hydraulic system, proper flushing of the system is crucial to the system performing at its maximum efficiency. Before installation, make sure all lines, filters, and reservoirs are flushed, cleaned and properly inspected or replaced before installing knew hydraulic pump, motor or transmission.


    MS35 Displacement Diagram

    Code
    HMS35
    Displacement Group
    7
    9
    0
    2
    Displacement(ml/r)
    2439
    3143
    3494
    4198
    Theoretical torque at 10MPa(N.m)
    3878
    4997
    5555
    6675
    Rated speed(r/min)
    100
    80
    63
    63
    Rated pressure(MPa)
    25
    25
    25
    25
    Rated torque(N.m)
    8000
    10300
    11450
    13800
    Max.pressure(MPa)
    31.5
    31.5
    31.5
    31.5
    Max.torque(N.m)
    9850
    12700
    14150
    17000
    Speed range(r/min)
    0-140
    0-140
    0-130
    0-110
    Max.power(kW)

    Standard displacement is110kW,variable displacement priority rotation 73kW,no priority is 55kW



    Applications:




    MS35 Connection Dimension



    High precision testing facilities and experienced inspectors.
