    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : MS50
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant

    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant


    Features:

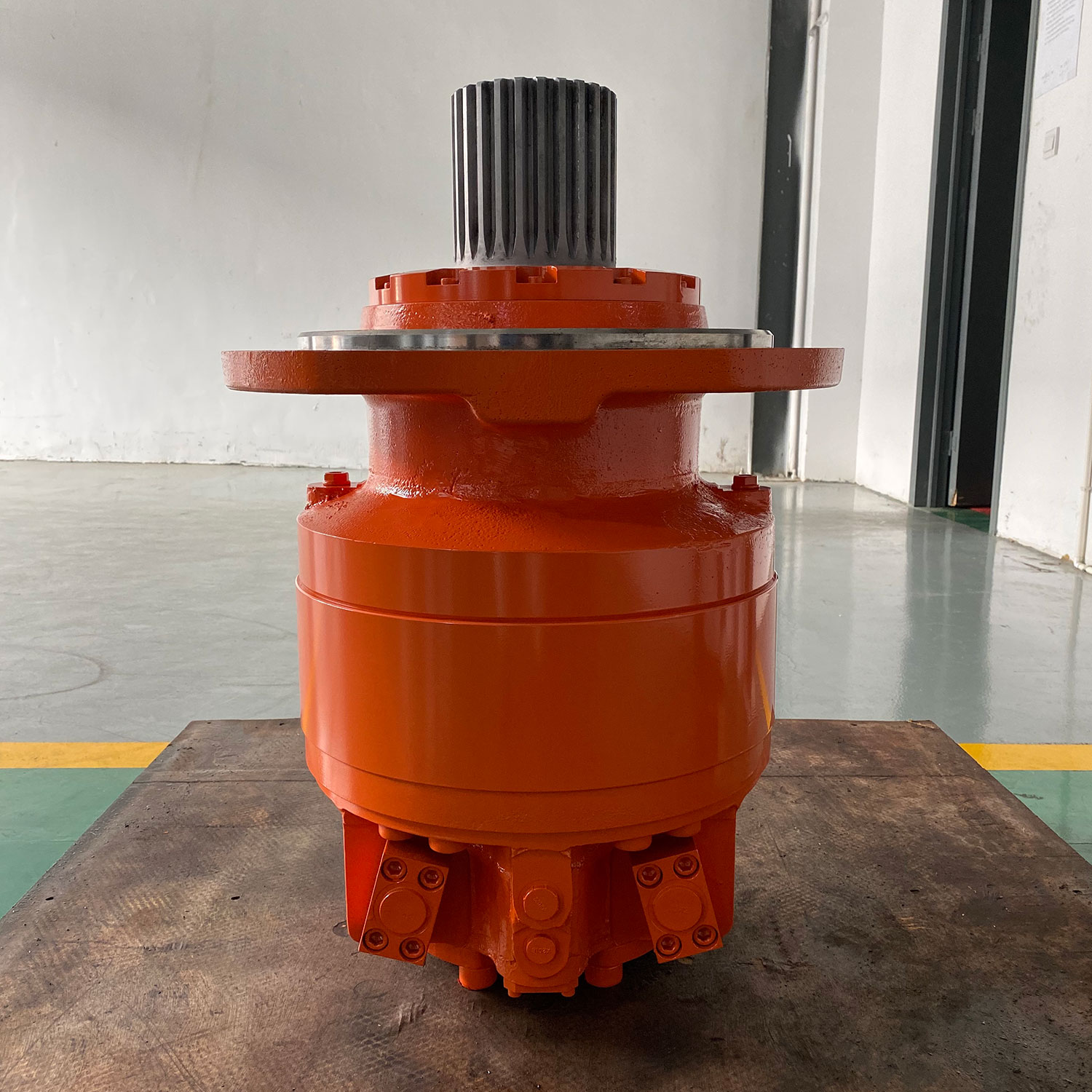

    POCLAIN MS50 Hydraulic Motor:

    1). Radial piston type;

    2). Adopt Imported Bearing and Oil Seal, etc.

    3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

    4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.



    Hydraulic shaft motors: multi-cam radial pistons. Standard manufacture splined shaft (DIN), one or two speeds, with or without brake (integral multi-disc wet brake).

    Also available as a hydraulic wheel motor with flanged output shaft or drum brake on some models.

    “S” Series are available with larger displacements in smaller bodies to give a compact design. This results in lower pressures and speeds.


    MS50 Displacement Diagram


    TypeMS50-8MS50-9MS50-0MS50-1MS50-2
    Displacement(ml/r)FullSemiFullSemiFullSemiFullSemiFullSemi
    35001750400820044996174760123006
    Max power(kw)12382123821236512382
    Pressure discrepancy 10MPa Torque
    (N. m)
    52312562599029357467255889854402
    Rated torque(N. m)13077149751866722463
    Rated pressure(MPa)25252525
    Max pressure(MPa)40404035
    Rated speed(r/min)40404035
    Speed range(r/min)0-1000-1000-1000-90

    Applications:


    Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.

    Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.

    Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.



    MS35 Connection Dimension


    High precision testing facilities and experienced inspectors.
