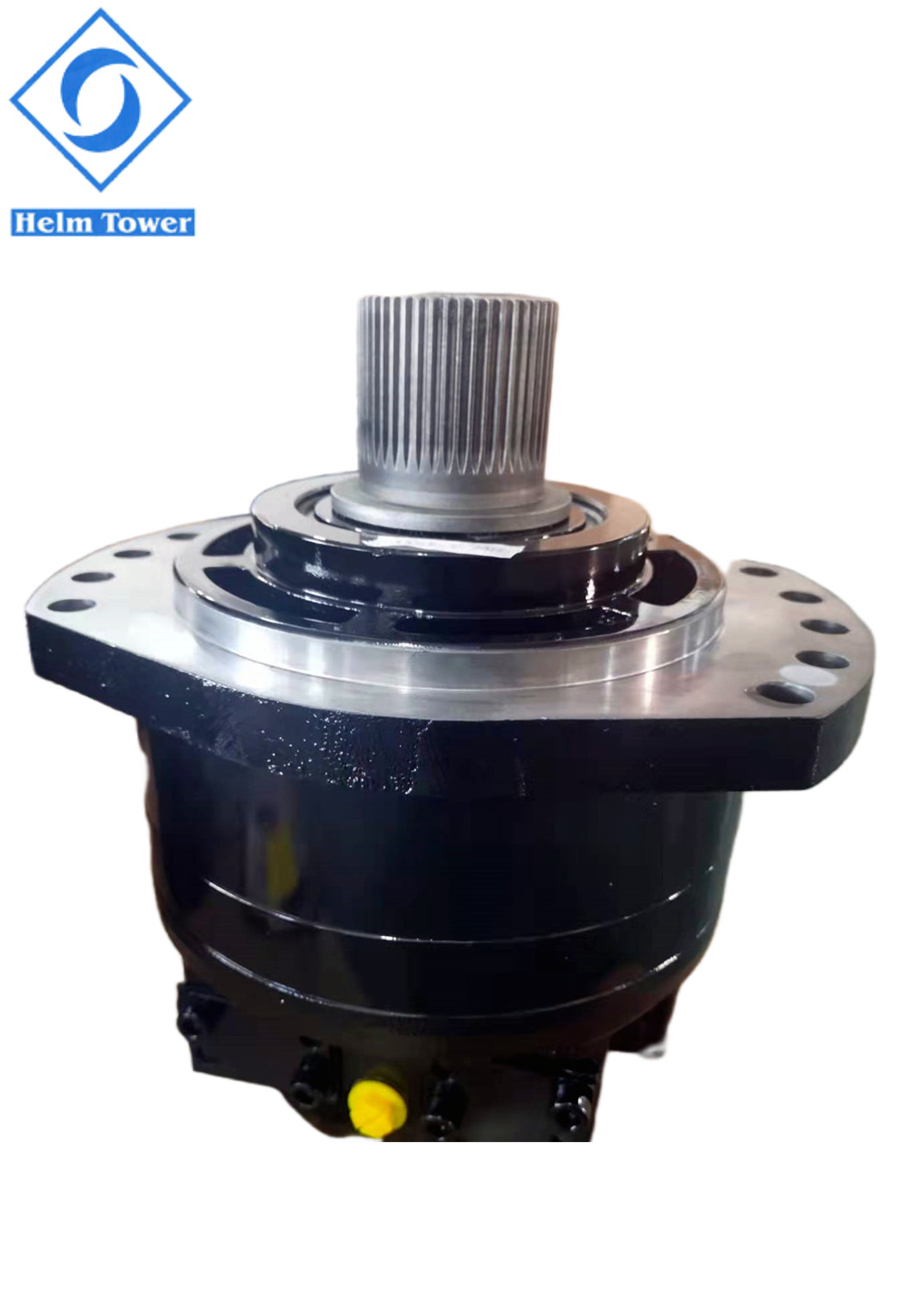

    Low Speed High Torque Hydraulic Motor Mcr10 For Mining Machinery

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : MCR10
    Certification : ISO9001
    Price : 500usd
    Payment Terms : L/C, T/T
    Supply Ability : 450 sets per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Low Speed High Torque Hydraulic Motor Mcr10 For Mining Machinery

    Low Speed High Torque Hydraulic Motor Mcr10 For Mining Machinery


    Low Speed High Torque Hydraulic Motor Mcr10 Mcre10 For Mining Machinery


    1. Radial piston design.
    2. Higher output torques, lower output speed, smoother output speed at low speeds.
    3. Optimized and modular design capable of delivering high performance.
    4. Highly efficient at any speed or operating pressure.
    5. Withstand the most extreme operating conditions and require very little maintenance.


    This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.


    CodeHMCR10HMCRE10
    Displacement Group012012
    Displacement(ml/r)780860940112012501340
    Theoretical torque at 10Mpa(N.m)124013671494178019872130
    Rated speed(r/min)1251001001008080
    Rated pressure(Mpa)252525252525
    Rated torque(N.M)256028203090368041104400
    Max.pressure(Mpa)31.531.531.531.531.531.5
    Max.torque(N.m)316034803810454050605430
    Speed range(r/min)0-2150-1950-1800-1500-1350-125
    Max.power(kW)4444445050

    50

    MCR10 Application:

    Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill

    Engineering Machinery:Skid Steer Loader,Break Machine
